Hot Tub, Pool and Spa Electrical in the Phoenix Valley

Hot tub wiring is one of the most code-heavy jobs in a home, and pool equipment pads are where electrical corners get cut the most. The pads sit in full sun, they get worked on by pool companies, handymen and past owners, and the rules for them are stricter than anywhere else on the property. At The Wire Guy Electric, we wire hot tubs and spas, and we work on pool equipment circuits, bonding, disconnects and panels.

Hot Tub and Spa Hookups

Most 240V hot tubs pull 40 to 60 amps, so each one gets a dedicated circuit. We never splice into an existing one. A proper hookup includes:

• GFCI protection. The National Electrical Code requires it on every hot tub circuit, and a GFCI breaker cuts the power in milliseconds when something goes wrong.
• A disconnect within sight of the tub and at least five feet from it, so anyone can shut the power off without going to the main panel. We usually mount it on the house wall closest to the tub.
• The right wire size. A 50-amp tub typically takes 6-gauge copper wire in conduit.
• Bonding. Every metal part within five feet of the tub, such as railings and ladders, is bonded to equipment ground.
• Sun-rated, sealed conduit. Standard PVC gets brittle in direct Arizona sun within a few years, so we use UV-rated conduit or schedule 80 PVC on any run that sees sun, sealed against monsoon rain and dust.

Smaller hot tubs sometimes run on a 120V plug-and-play setup and need only a dedicated GFCI outlet near the tub. Most mid-range and all premium hot tubs are 240V hardwired.

Pool Pumps and Equipment Pads

Every permanently installed pool needs a few things at the equipment pad:

• GFCI protection on the pump circuit, whatever the voltage.
• A disconnect within sight of the motor, at least five feet back from the inside edge of the water.
• Permanent wiring in conduit. A pool pump on an extension cord is a serious hazard.
• Conduit that is sealed and in good condition. Sun-rotted gray PVC is one of the most common things we find on Valley equipment pads.
• GFCI protection on any receptacle near the pool, which also has to sit a minimum distance from the water.
• A bonding conductor tied to the motor and everything else in the grid.

A pool built decades ago was legal under the code in effect at the time, and older installations are generally left alone as they sit. When equipment is replaced or the wiring is changed, the new work has to meet current requirements, so a pump swap is a good time to have the pad looked at.

A variable speed pump changes the electrical side too. Its drive is electronics, which are sensitive to heat and surges, so shade, the enclosure rating and surge protection matter. Many of these pumps run on 120 or 240 volts and are more efficient at 240. A long run to a pad at the back of the lot can also have voltage drop that the old motor tolerated and a drive will not, so we check the circuit before the swap.

Bonding Is Not Grounding

Grounding gives fault current a path back to the panel so a breaker opens. Bonding ties every piece of metal in and around the pool together with at least 8 gauge solid copper, so it all sits at the same electrical potential: the pump motor, the heater housing, the ladder and handrails, the light niche, metal fittings, the steel in the pool shell and the water itself. If stray voltage shows up and the ladder sits at a different potential than the water, a swimmer touching both becomes the path between them.

Bonding and GFCI protection are two separate systems solving two separate problems, and an older pool can have one and not the other. The most common defect we find is a bonding wire left loose after a pump, heater or salt cell was replaced. The pool works fine, and the protection is gone.

Panel Capacity, Permits and Timing

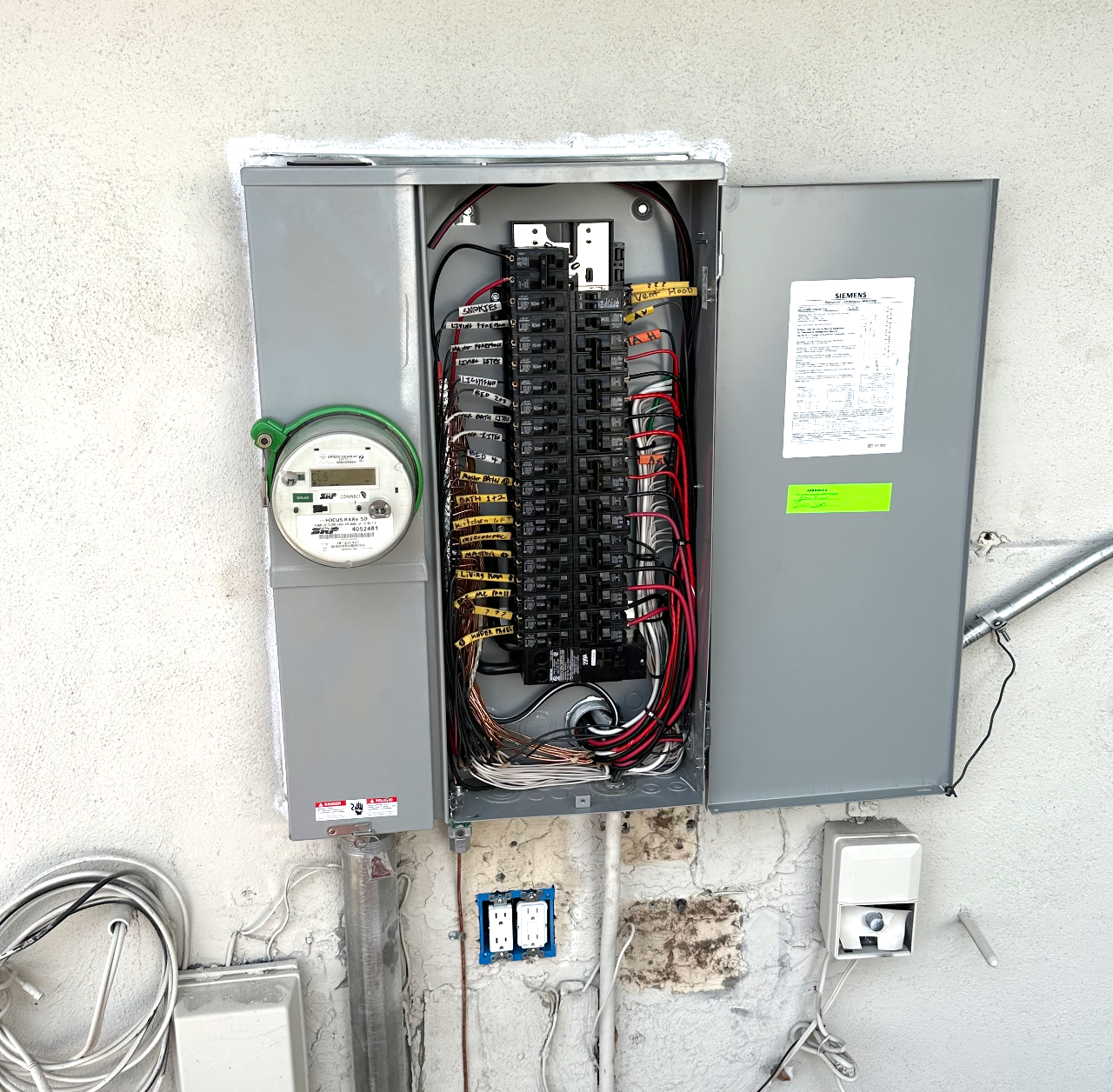

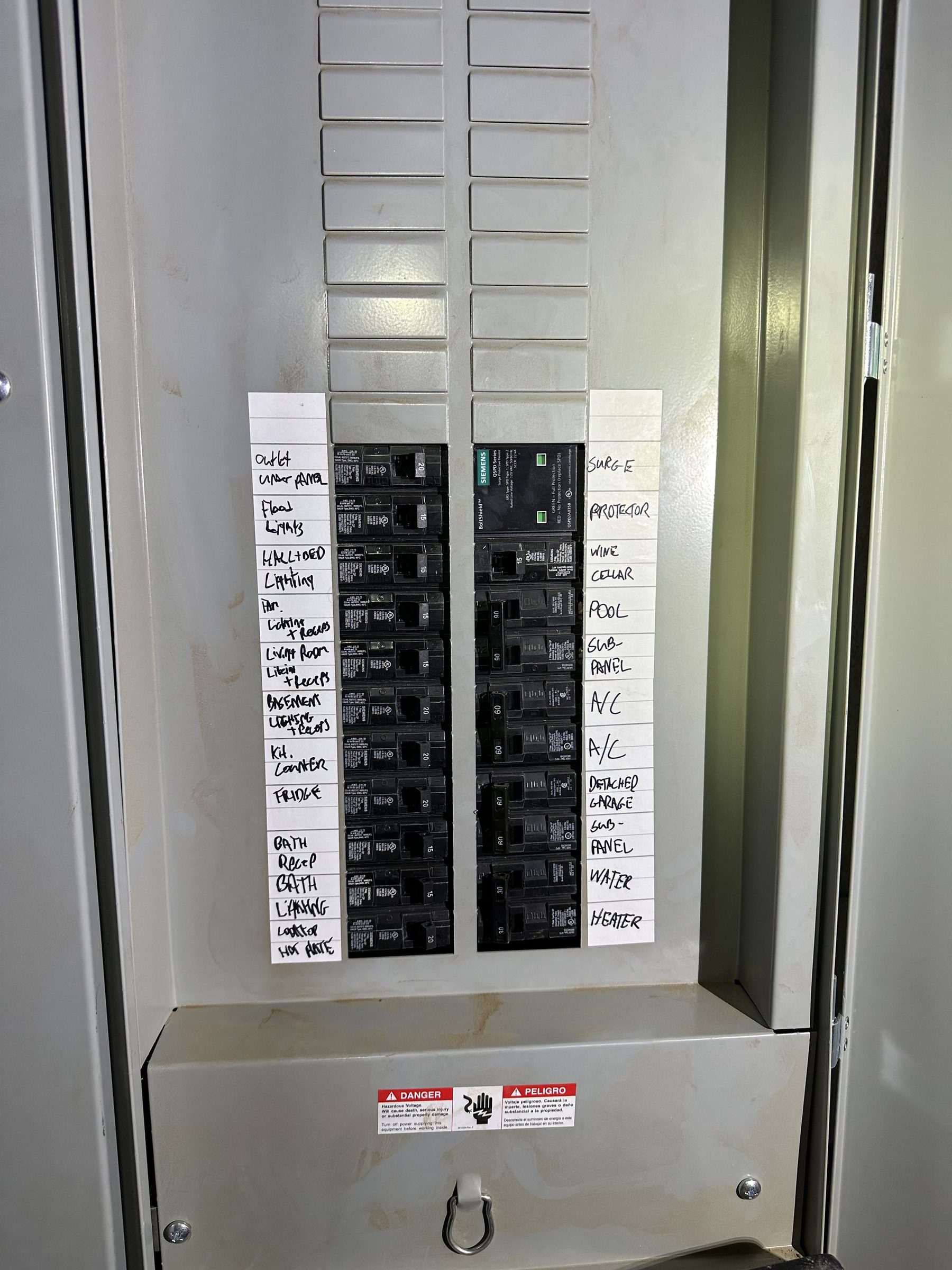

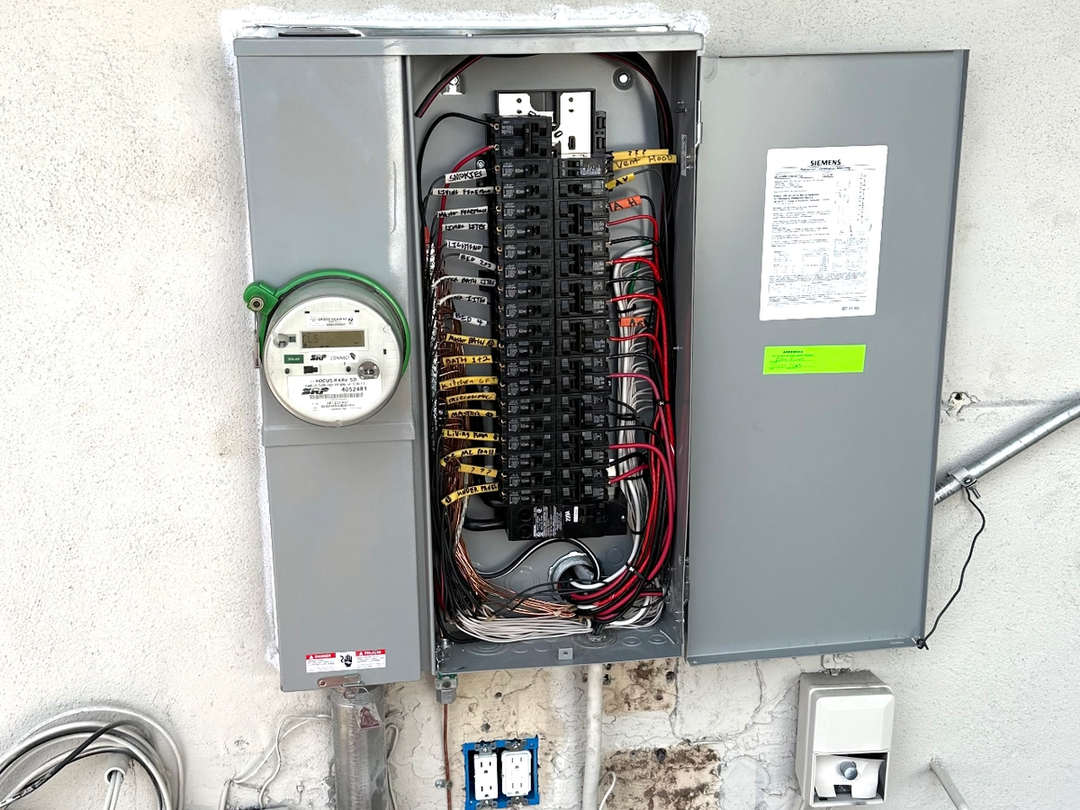

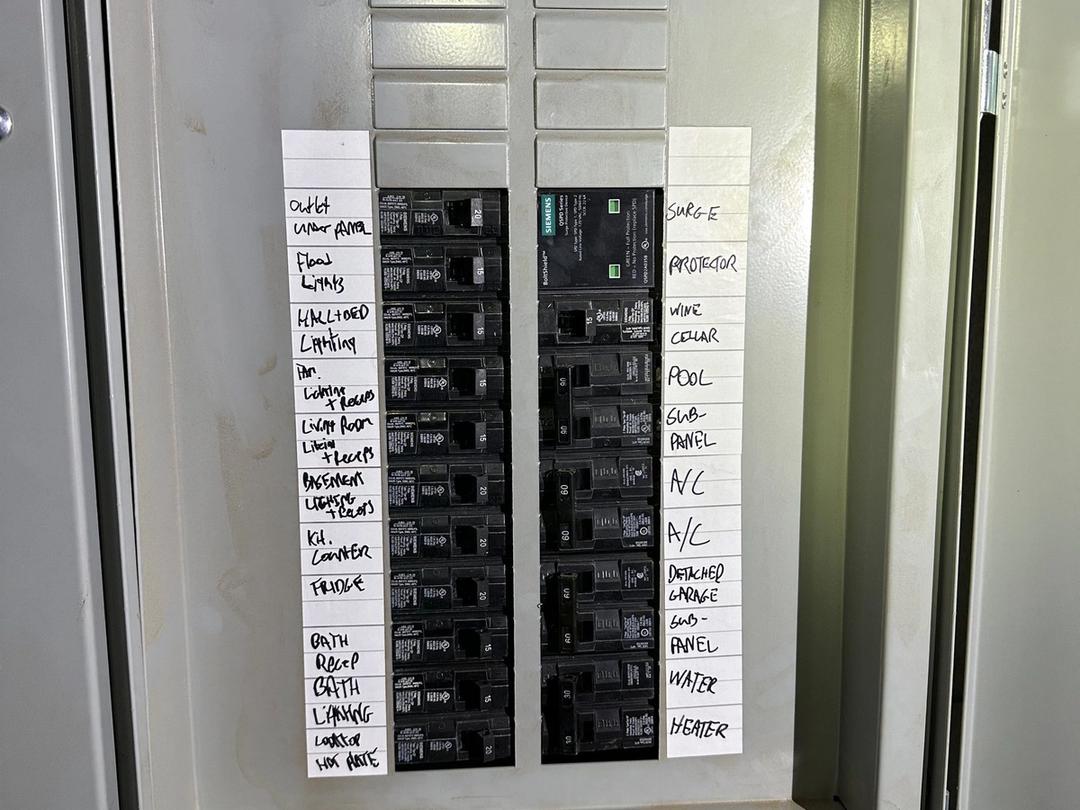

A 50-amp hot tub circuit can push a panel over capacity, especially with solar or a large AC unit already loading it, and an electric pool heat pump is a load similar to a second air conditioner. We always do a load calculation before we give you a number. If the panel cannot carry the new load, you may need a subpanel or a panel upgrade first.

A dedicated hot tub circuit is the kind of work most cities require a permit for. Pulling one adds time and cost, and we talk through the tradeoff with you before we start. When we pull the permit, we schedule the inspection and make sure everything passes. Most residential hot tub hookups are a one-day job: rough-in the same day, inspection the next business day, and the final connection and power-up after the inspector signs off. A panel upgrade adds two to three days.

What It Costs

The price depends on the distance from your panel to the tub, whether your panel has room for the circuit, and how the conduit has to run through stucco, tile roofs and slab foundations. Our hot tub electrical installation cost guide has the price ranges. We use flat-rate pricing, so you know the price before we start.
